Straightaway 100 SS

SKU STRAIGHTAWAY-100

Please note that this product is discontinued, please see our Eternal 130 system

Produced in stainless steel and developed to cope with harsh operating environments, the Coburn Straightaway 100SS is ideal for applications within the food and chemical industries and can withstand extreme climatic conditions.

Overview

Please note that this product is discontinued, please see our Eternal 130 system

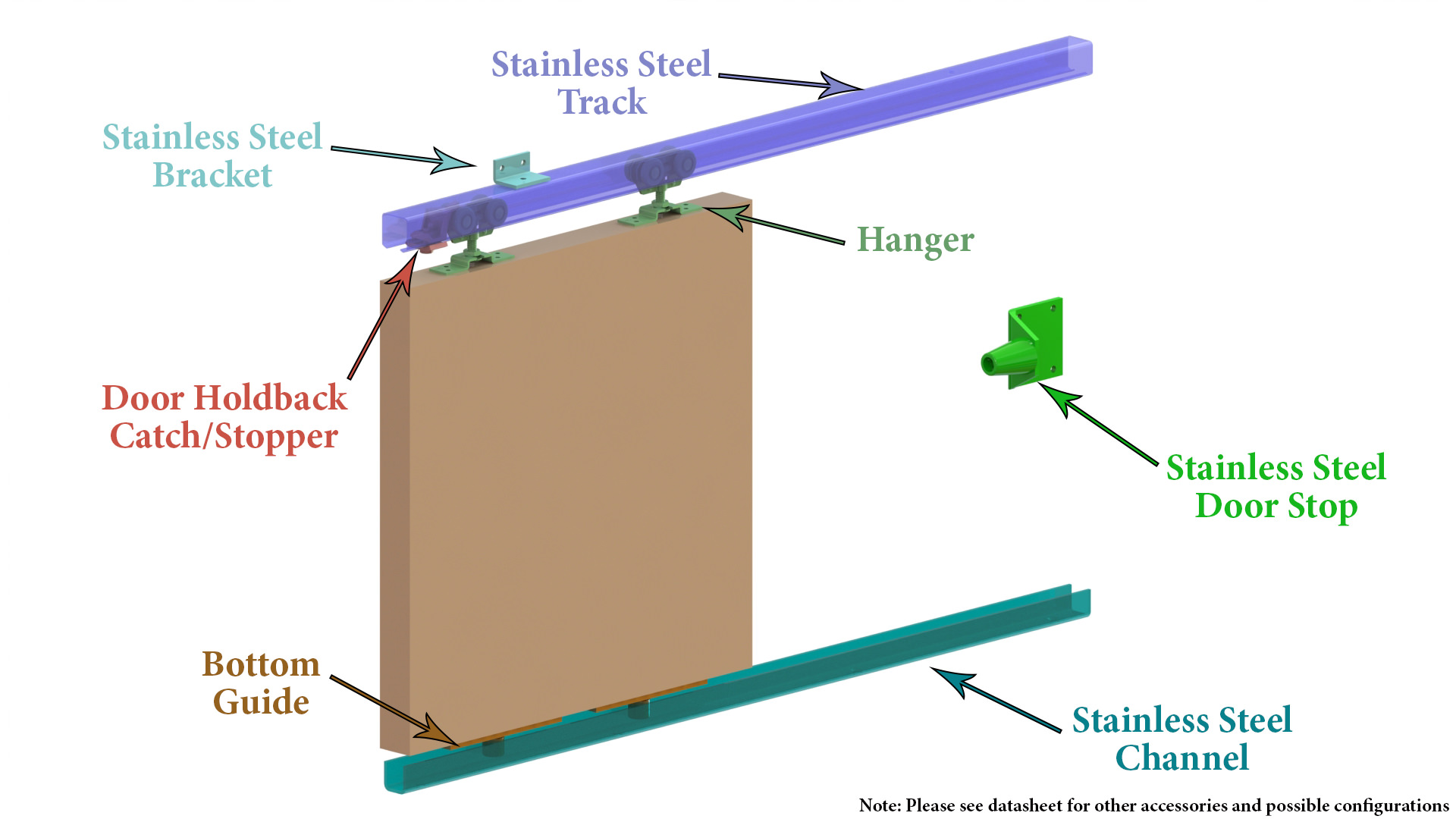

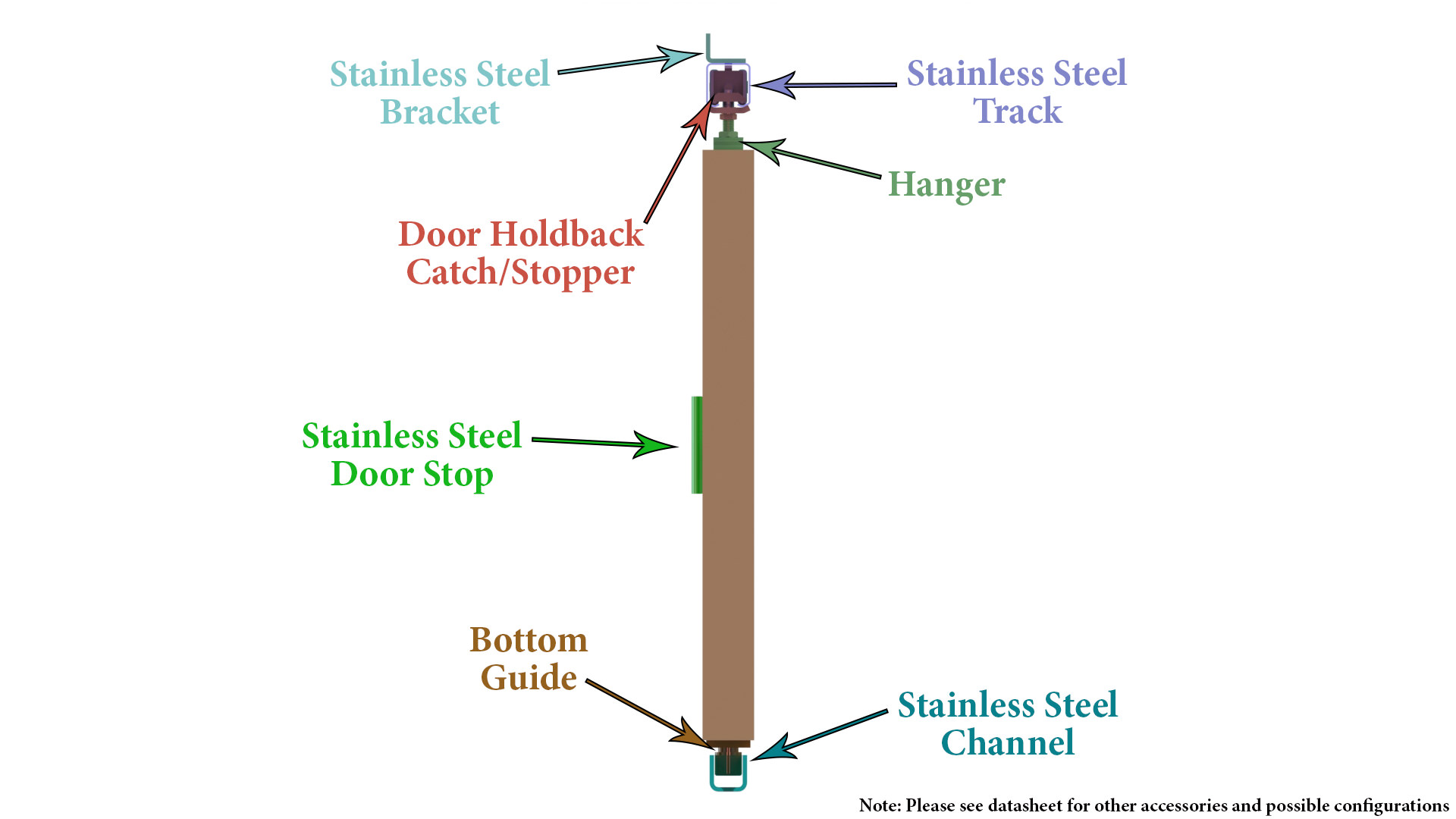

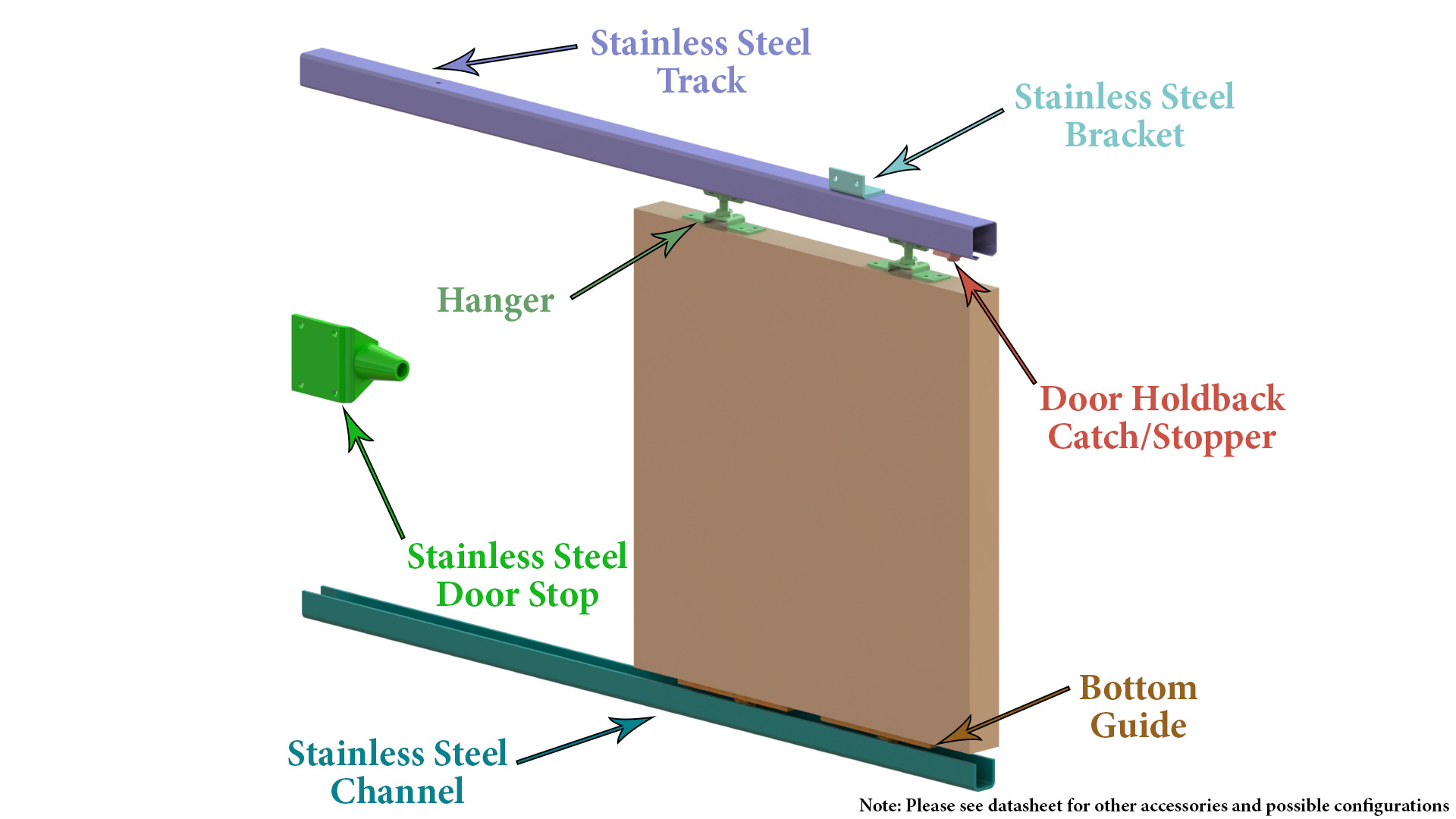

Top hung sliding system for timber or metal doors up to 100kg

  • Stainless steel top track and components throughout
  • Ideal for applications within the food and chemical industries and can withstand extreme climatic conditions
  • Smooth operation provided by nylon wheeled hangers
  • Tracks can be mounted directly to the soffit or wall mounted using brackets
  • Hangers have vertical and lateral adjustment to ensure a perfect fit
  • Detachable door plates enable easy and efficient installation
  • Range of bottom guiding options available to achieve a clear threshold
  • Any number of doors can be used on single or multiple lines of track to cover the width of the opening
  • Self-closing and Soft closing options available for both soffit or wall mounted tracks
  • Simultaneous opening option available for bi-parting doors
  • Telescopic opening options for 2 doors and 3 doors available



TECHNICAL SPECIFICATIONS
Weight
100
Thickness
20mm - 50mm
Height
2500mm
Closure Type
Sliding
Door Material
Metal
Timber
Fitting Position
Top Hung
