Straightaway 438

SKU STRAIGHTAWAY-438

Straightaway 438 is the heaviest weight top hung industrial system designed to be used on factories, warehouses, port installations etc. Designed for single runs of track.

Overview

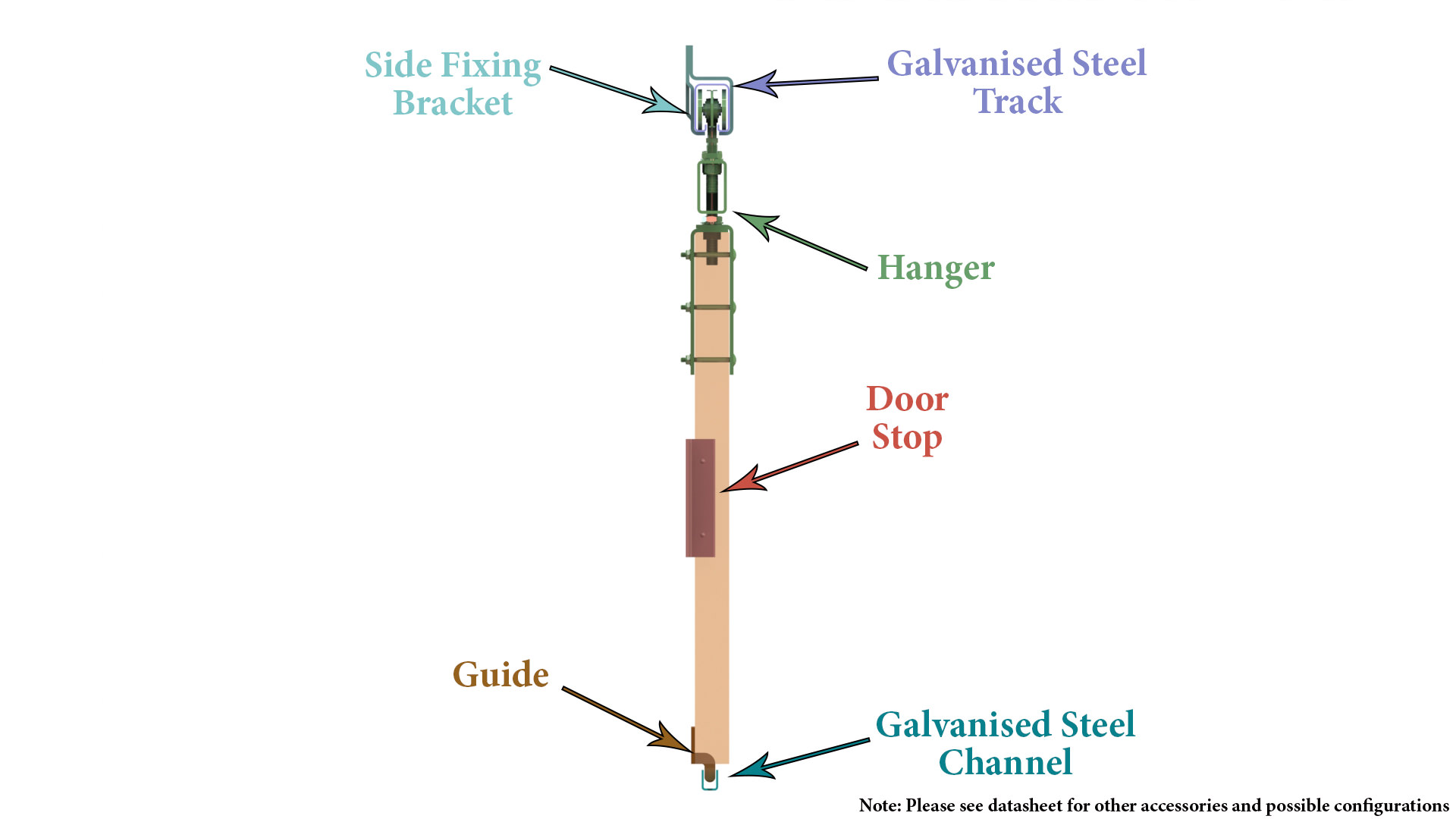

Top hung sliding system for external timber or metal doors up to 1500kg

  • Ideal for industrial applications
  • Steel top track galvanised to BS EN 10346
  • Hangers with precision ball bearings and high performance steel wheels provide smooth operation
  • Vertical and lateral adjustment available on hangers ensures a perfect fit
  • Soffit and wall fixing available
  • Range of bottom guiding available including the use of stay rollers to achieve a clear threshold
  • Suitable for single or multiple track layouts
  • Any number of doors can be used on single or multiple lines of track to cover the width of the opening



TECHNICAL SPECIFICATIONS
Weight
1500
Thickness
57mm - 70mm
Height
8000mm
Closure Type
Sliding
Door Material
Metal
Timber
Fitting Position
Top Hung
