Centafold 100

SKU CENTAFOLD-100

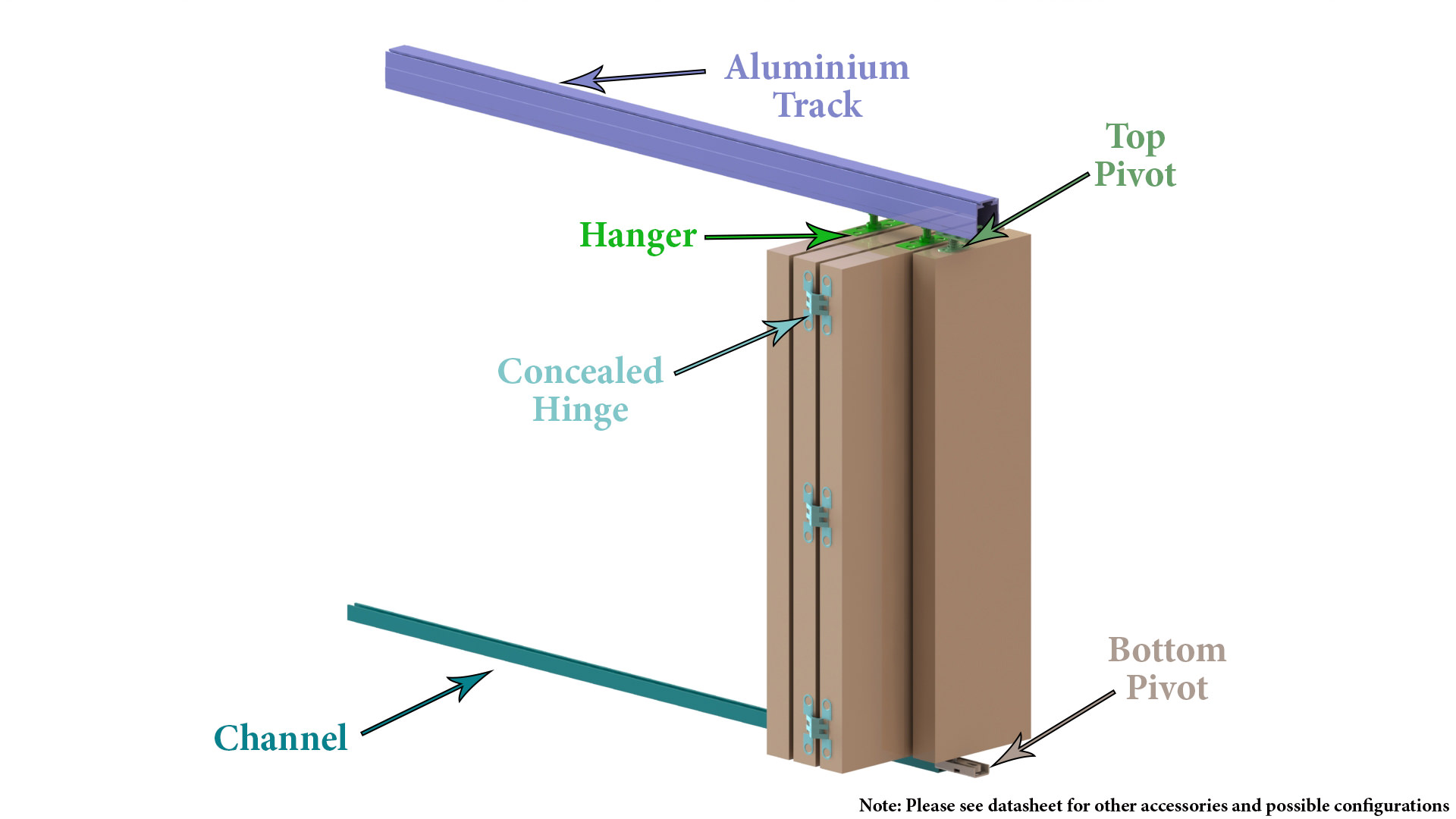

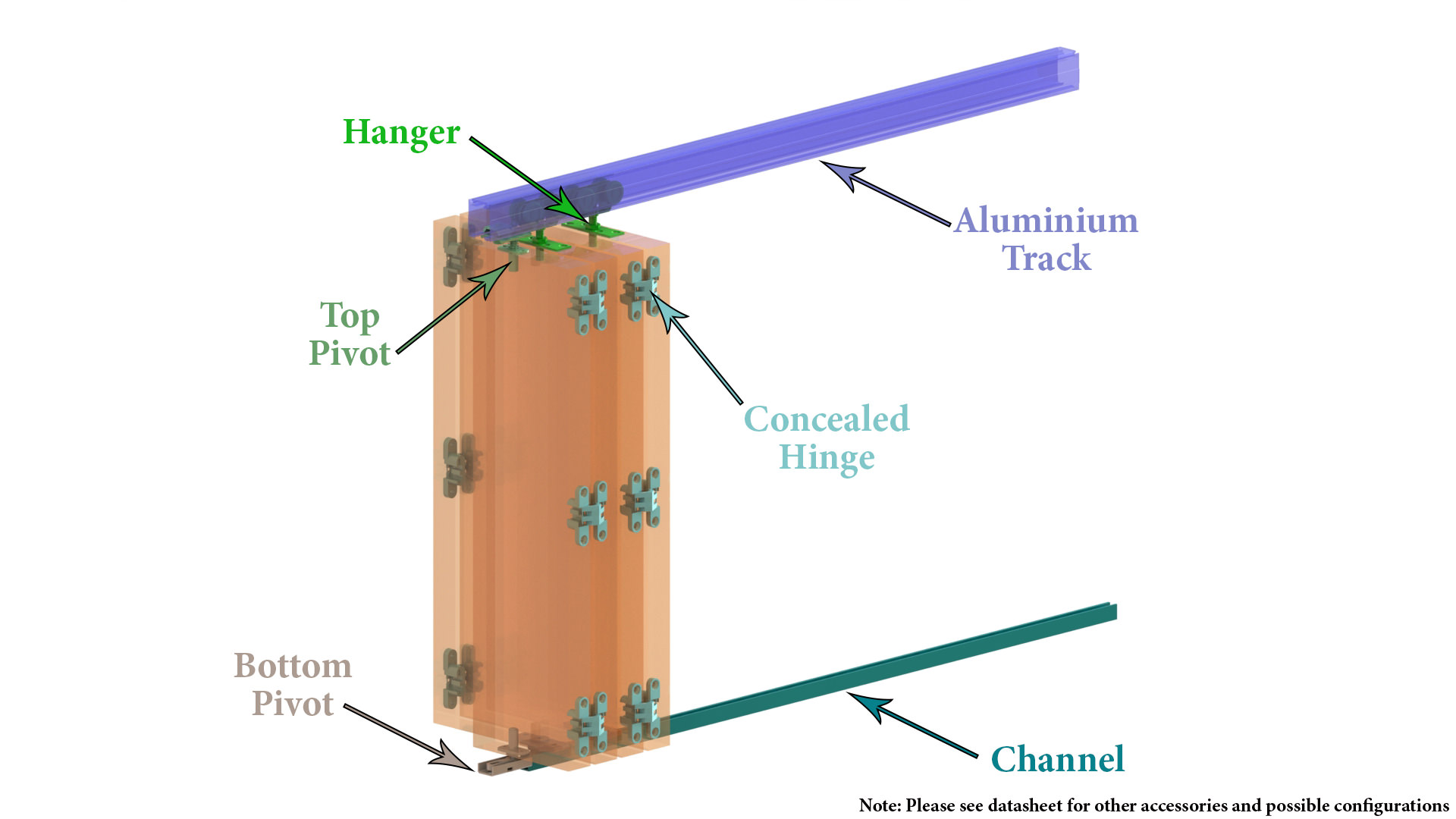

A top hung, centre folding system which is suitable for light weight interior doors.  Centafold 100 features concealed fixings on hangers, pivots and hinges to offer clean lines and simple styling for room dividers and similar.

Overview

Internal top hung centre folding system for timber doors up to 27kg

  • Concealed fixing components ensure clean lines and simple styling for room dividers
  • Smooth and quiet operation provided by aluminium track and nylon rollers
  • Suitable for suites of 1½ or 3 ½ leaves either loose or pivoted to jamb
  • A clear threshold can be achieved by omitting floor guiding on doors less than 450mm wide which are under 15kg and less than 2100mm in height
  • Soffit or wall fixing available
  • Hangers have vertical adjustment to ensure a perfect fit
  • Centafold 100 is available in a 1½ door trackset for openings up to 1500mm and a 3 ½ door trackset for openings up to 2400mm, additional hinges required for doors over 2100mm, 2 door and 4 door component packs are available for additional doors





TECHNICAL SPECIFICATIONS
Weight
27
Width
600mm
Thickness
20mm - 40mm
Height
2500mm
Closure Type
Folding
Door Material
Timber
Fitting Position
Top Hung
