Foldaside 30

SKU FOLDASIDE-30

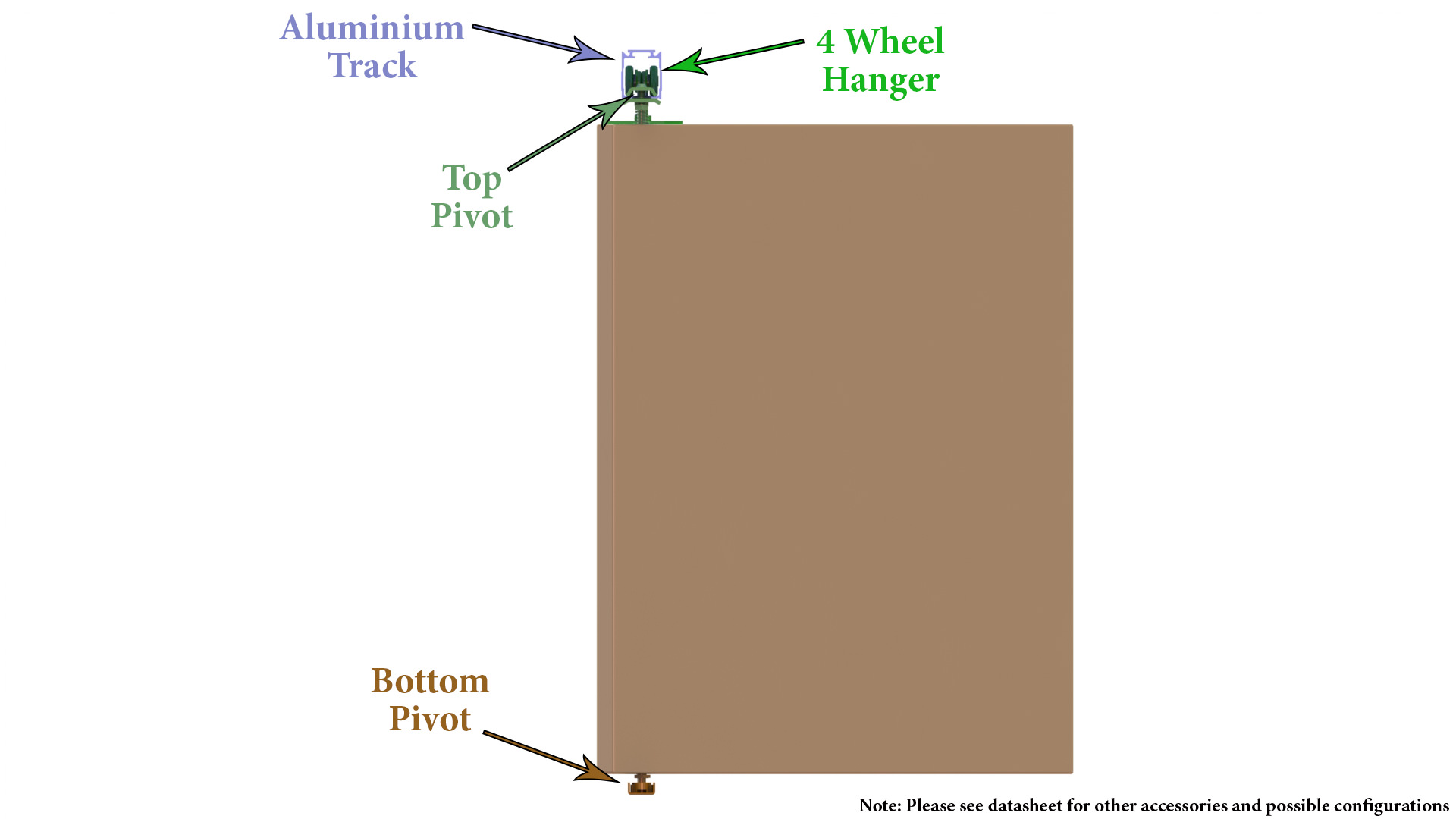

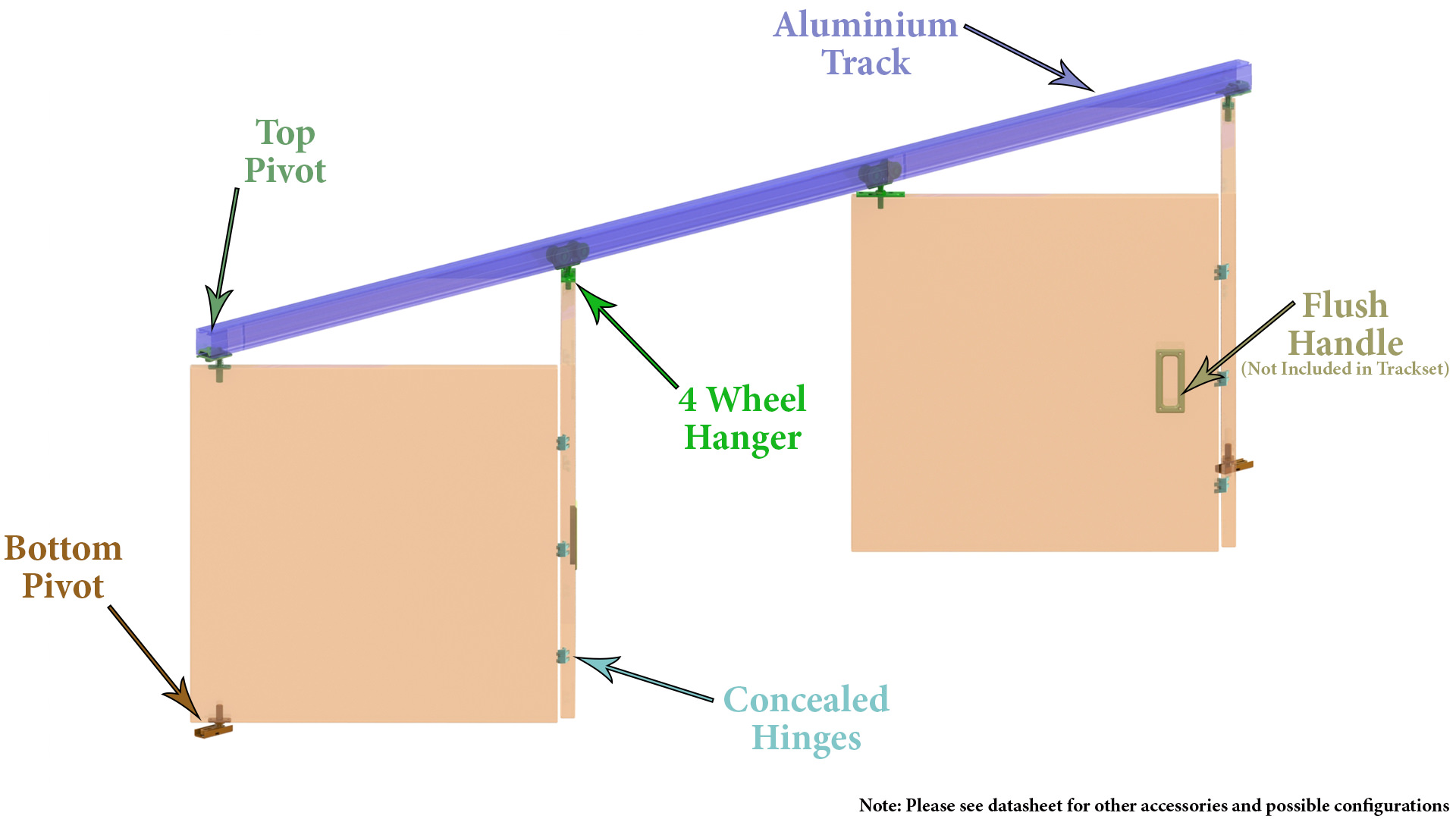

The Foldaside 30 is a reliable hardware system purpose designed for lightweight internal folding doors up to 30kg* per leaf. The end door within the set is secured using a pivot bearing whilst the other doors are aligned by means of unobtrusive hinges and hangers that bring the panels together.

Overview

Top hung folding system for internal timber doors up to 30kg

  • No recessed floor channel necessary with 2 leaf configurations to achieve clear threshold
  • A maximum of four doors can be hinged together, suitable for both odd and even suites of doors
  • Smooth and quiet operation provided by anodised aluminium track and nylon wheeled hangers
  • Fittings are concealed to achieve clean lines
  • Pivot vertically and laterally adjustable to ensure a perfect fit
  • Foldaside 30 is available in a 2 door trackset for openings up to 1200mm, a 3 door trackset for openings up to 1800mm and a 4 door trackset for openings up to 2400mm,
  • For additional doors and larger openings anodised aluminium track and fitting packs for two, three or four doors are available.



TECHNICAL SPECIFICATIONS
Weight
30
Thickness
20mm - 40mm
Height
2500mm
Closure Type
Folding
Door Material
Timber
Fitting Position
Top Hung
