Duoswing

SKU DUOSWING

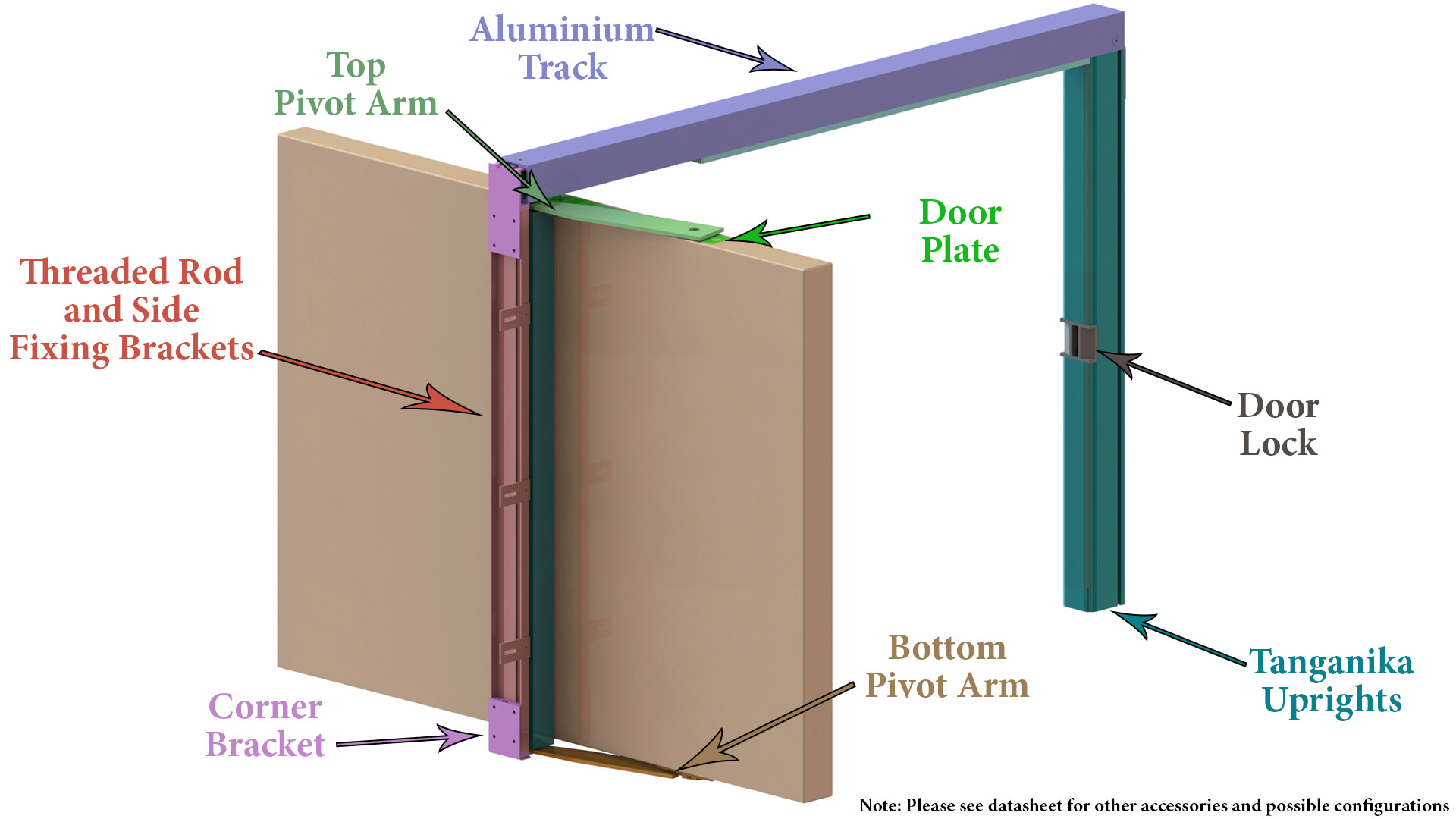

Duoswing has been developed to minimise the door swing area whilst maintaining the opening width of a conventional door.  Whilst a standard swing door uses hinges on the edge of the door, the Duo Swing uses top and bottom pivots allowing the door to open with half of it on either side of the frame. This simultaneous rotation and swing movement of the door leaf during the opening and/or closing stages saves 50% of the layout space making even small rooms accessible.

Overview

Swing door pivot system developed to minimise the door swing area whilst maintaining the opening width of a conventional door saving 50% of the layout space



  • Uses rototranslation technology, a space saving alternative to swing doors
  • Ideal for doors facing each other leading into a narrow corridor
  • Can be used with various door types including wood, glass, metal and composite
  • Aluminium track allows easy manual operation
  • Smooth and quiet operation provided by nylon wheeled rollers
  • Vertical and lateral adjustment ensures a perfect fit
  • Tanganika vertical uprights available to complete the finish of your opening
  • Soft opening option available
  • Duoswing is available in sets for doors 686mm, 762mm and 838mm wide



TECHNICAL SPECIFICATIONS
Weight
70
Width
686mm, 762mm or 838mm
Thickness
35mm - 50mm
Height
1981mm
Closure Type
Sliding
Door Material
Timber
Fitting Position
Top Hung
