Hideaway

SKU HIDEAWAY

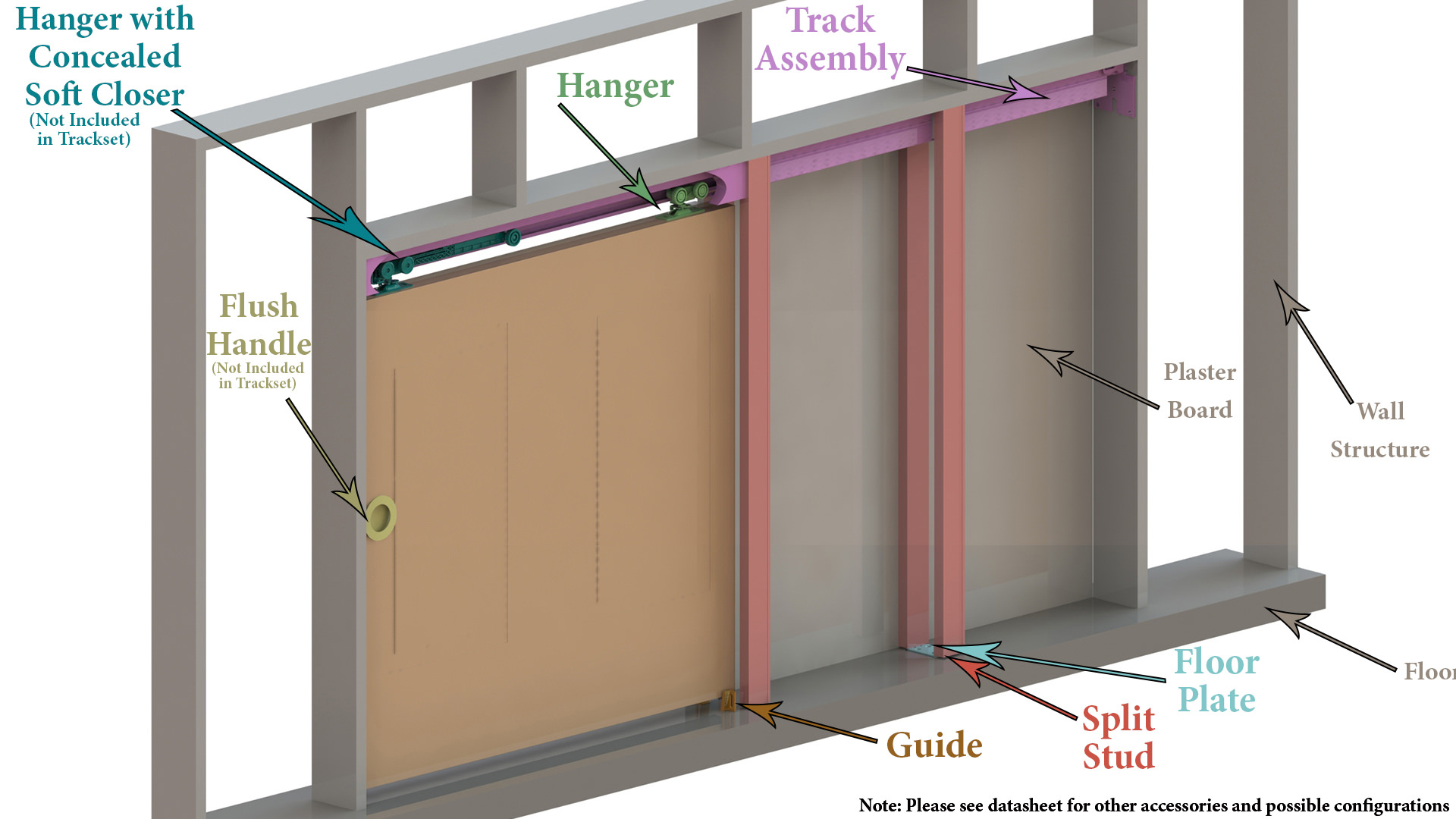

Hideaway is a pocket door framing kit suitable for plasterboard walls, created to hide sliding doors within a wall cavity. Hideaway is able to recover the space normally occupied by traditional hinged doors and is a simple but perfect solution for lightweight sliding pocket doors. The various accessories such as soft and self closing make it suitable for a wide range of applications around the home.

Overview

Pocket door framing kit for internal timber doors up to 90kg.

  • Hideaway enables you to recover the space normally occupied by traditional hinged doors by sliding doors within a wall cavity
  • Multiple floor guiding options available to suit different environments all free from the need for floor channel leaving a clear threshold
  • Floor plate brackets and Steel-wrapped studs nailed to pre-assembled header makes installation simple whilst providing maximum rigidity
  • Keyhole slots in the track and unique hanger locking clip allows easy fitting and removal of the door if required
  • Cavity widening kit available to increase maximum door thickness to 50mm
  • Soft closing options available to suit any door size including concealed soft closing
  • Simultaneous operation and hold open functionality available
  • Hideaway is available in 1 door tracksets for doors up to 1524mm wide and up to 2743mm high, for bi-parting doors the trackset jointing kit is available
TECHNICAL SPECIFICATIONS
Weight
90
Width
1524
Thickness
35mm - 50mm
Height
2743mm
Closure Type
Sliding
Door Material
Timber
Fitting Position
Top Hung
