Inserdor

SKU INSERDOR

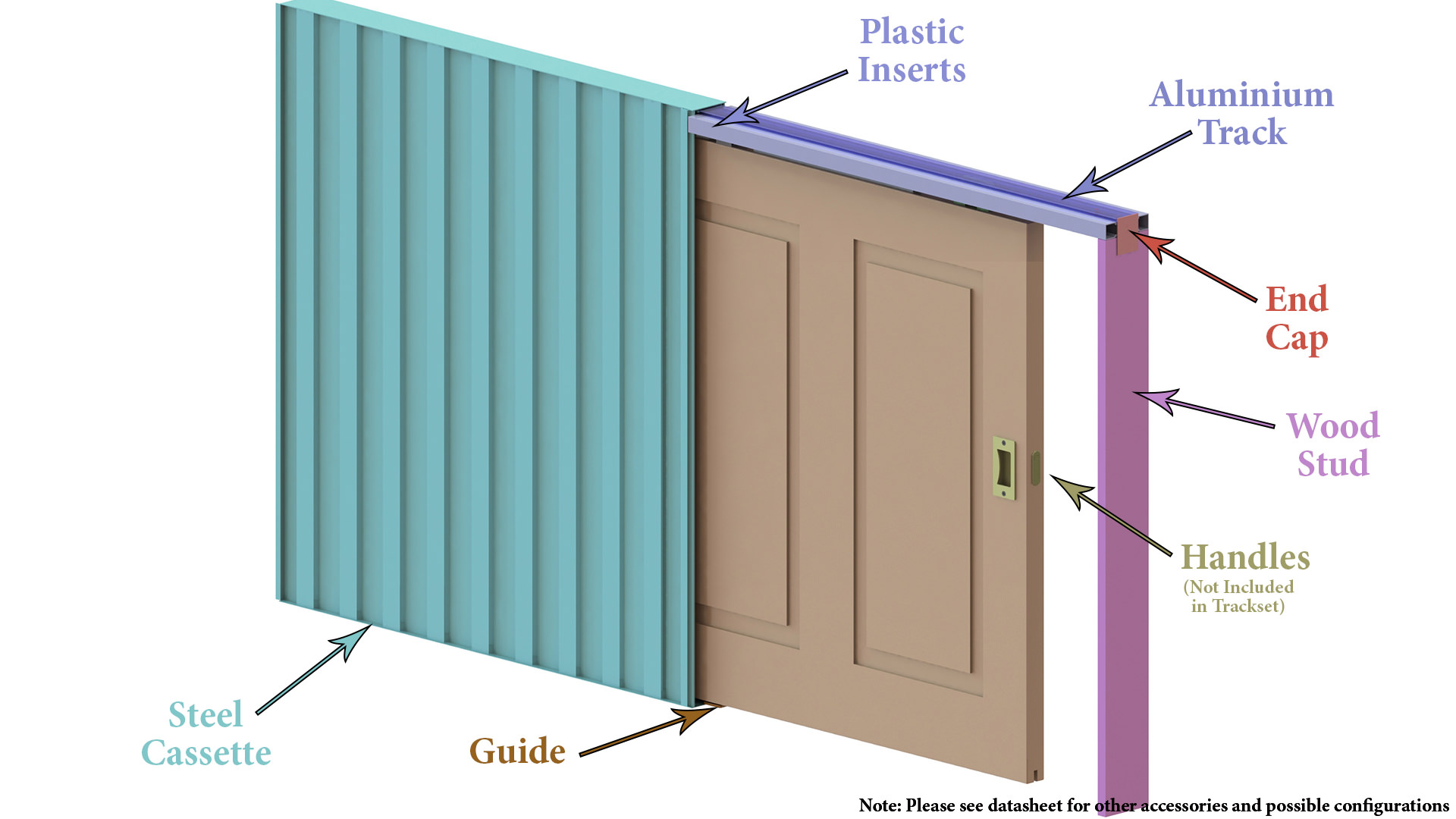

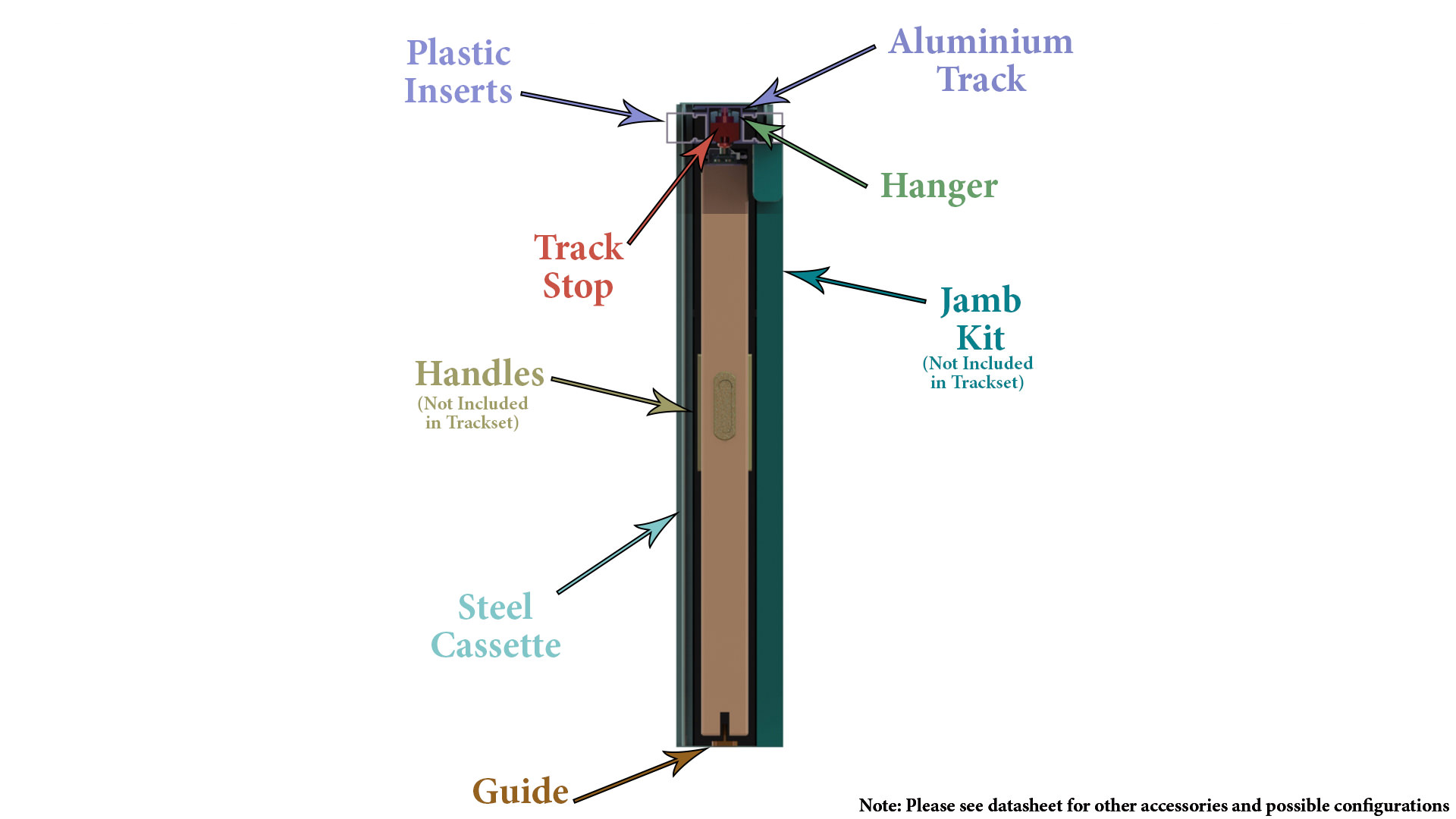

Inserdor is a high quality and innovative sliding door system suitable for use on plasterboard walls, where a door is required to silently slide within a cavity wall. The system is available in either cassette or kit forms and is designed to be easily and quickly fitted to reduce on-site installation time.

Overview

High quality pocket door cassette system for internal timber doors and glass panels up to 120kg

  • Inserdor enables you to recover the space normally occupied by traditional hinged doors by sliding doors within a wall cavity
  • Galvanised steel cassette with dovetail corrugation to provide maximum rigidity ensuring perfect bonding with plasterboard
  • Tested for use on fire rated doors up to FD30 (30 mins)
  • No recessed floor channel required leaving a clear threshold
  • Jamb kits to suit 100mm or 125mm finished wall thickness available in various finishes including Tanganika and Oak.
  • FD30 rating can be achieved on a selection* of kits by using the fire rated jamb kit and self closer
  • Self-closing and Soft closing options available to suit any door size
  • Simultaneous operation and hold open functionality available
  • Glass door fitting kit available for use with glass doors
  • Inserdor is available in 1 door pre-assembled systems for doors from 610-1226mm wide and up to 2040mm high, contact us for details on larger sizes
  • For bi-parting doors the Double door jointing kit is available

* 100mm Finished wall thickness kits able to achieve FD30 rating when used with the fire rated jamb kit and self closer are; 62805 – 626mm x 2040mm, 62806 – 726mm x 2040mm, 62819 – 610mm x 1981mm, 62820 – 686mm x 1981mm, 62821 – 762mm x 1981mm, 62822 – 838mm x 1981mm
